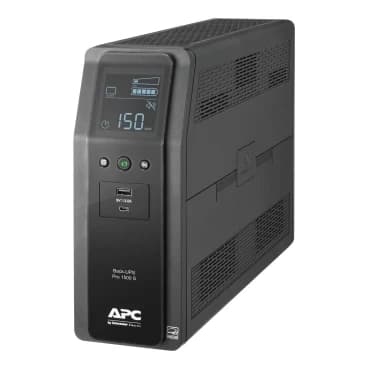

APC Back-UPS Pro BR1500MS2: specifications and runtime
We review this exact model’s published ratings, runtime examples, outlet layout and shutdown documentation. Each figure carries a dated source.
Exact model identity: APC Back-UPS Pro BR1500MS2, US 120 V model. Manufacturer identity source · checked 2026-10-17
Some links are affiliate links. BatteryRank may earn a commission at no extra cost to you.
Ratings, outlets and operating facts
Manufacturer-claimed specifications
Rated apparent power
1500 VA. Show source
claimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/Rated real power
900 W. Show source
claimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/Topology
Line-interactive · checked 2026-10-17On-battery waveform
Sine wave on battery · checked 2026-10-17Transfer specification
8 typical / 10 max ms. Show source
claimed sourceiportal2.schneider-electric.comchecked 2026-10-17https://iportal2.schneider-electric.com/Contents/docs/BR1500MS2_User%20guide.pdfOutlet split
6 battery + surge. Show source
claimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/4 surge-only. Show source
claimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/10 total. Show source
claimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/Model-specific check
The front Type-A and Type-C receptacles are charging ports. UPS status and shutdown use the separate communication port; APC’s manual documents PowerChute Personal Edition for Windows and does not establish NAS compatibility. Verify the host software path before buying for graceful shutdown.
APC manual · checked 2026-10-17Manufacturer runtime examples
Each point is the manufacturer’s stated runtime at its listed output load and test condition. These examples are not extrapolated into estimates for other loads.
| Load condition | Reported runtime | Source |
|---|---|---|
900 W. Show sourceclaimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/ | 3 min 12 sec. Show sourceclaimed sourceshop.se.comchecked 2026-10-17https://shop.se.com/pro/us/en/product/apc-back-ups-pro-1500va-900w-tower-120v-10x-nema-5-15r-outlets-avr-usb-type-a-c-ports-lcd-user-replaceable-battery/ | Manufacturer runtime · checked 2026-10-17At the manufacturer page’s 100% capacity-used setting; page load range 90–900 W. |
Use the linked manufacturer chart for loads not listed here. We do not infer runtime from VA, watt-hours, battery Ah or an unlisted load.
Communication and shutdown support
Data connection
Separate USB/serial data port for UPS communication; the front USB Type-A and Type-C ports are charging-only.
Source checked 2026-10-17Shutdown limits
The manual directs users to connect the supplied USB communication cable to the data port for PowerChute Personal Edition. The manual documents Windows support; it does not establish NAS compatibility.
Source checked 2026-10-17Confirm your exact operating system or NAS model with both manufacturers. A USB connector alone does not establish software or protocol compatibility.
Read the model in context
The watt rating is the real-power ceiling, while the VA rating is a separate apparent-power limit. Compare both with the computer, display and network equipment, and connect high-priority gear to the battery-backed outlets shown above. The surge-only outlets do not continue running when mains power fails.
APC’s runtime point is tied to the manufacturer page’s maximum-load setting. It cannot be stretched into an estimate for another desktop or NAS load; use the source chart and the actual measured draw for planning.
For graceful shutdown, the front USB charging ports are separate from the USB/serial communication port. The cited manual documents PowerChute Personal Edition for Windows and does not establish NAS support. Check the NAS manufacturer’s compatibility information before buying.
