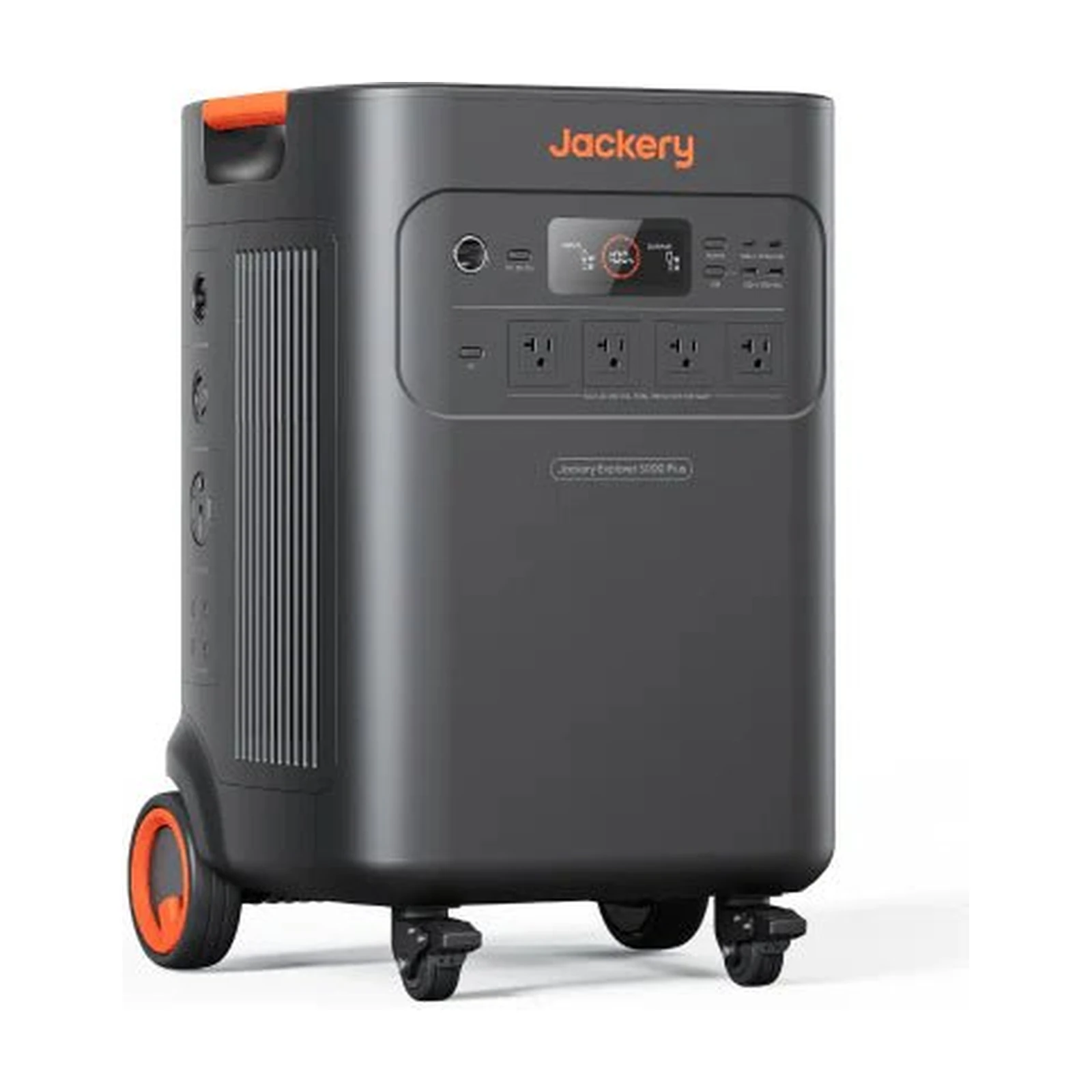

Jackery Explorer 5000 Plus
- AC delivered · est.
4,284 Wh. Show source
estimated sourcejackery.com ↗2026-07-04- output
7,200 W. Show source
claimed sourcejackery.com ↗2026-07-04- surge
14,400 W. Show source
claimed sourcejackery.com ↗2026-07-04- weight
61 kg. Show source
claimed sourcejackery.com ↗2026-07-04- recharge
210 min. Show source
claimed sourcejackery.com ↗2026-07-04
Balanced
#4 of 5
in the Whole-home / mega class · small class (n=5)
Lifted by Output & versatility and Durability & longevity; held back by charging & solar.
Check current availability and pricing at the retailer.
See alternatives to the Jackery Explorer 5000 Plus →At a glance
We review Jackery Explorer 5000 Plus as a whole-home / mega model. Use output, delivered capacity and startup limits to check your appliances. It supplies 7,200 W of continuous AC output. BatteryRank scores it 56 out of 100 within its size class.
Jackery Explorer 5000 Plus specs at a glance
Find the reading you need, then follow its source in the full specifications below.
- How much does the Jackery Explorer 5000 Plus weigh?
61 kg (134.5 lb), manufacturer-claimed, without accessories.
Source and date. Show source
claimed sourcejackery.com ↗2026-07-04- What are the dimensions of the Jackery Explorer 5000 Plus?
418 × 395 × 635 mm (16.5 × 15.6 × 25 in), length × width × height, manufacturer-claimed.
Source and date. Show source
claimed sourcejackery.com ↗2026-07-04- How long does the Jackery Explorer 5000 Plus take to charge?
3 h 30 min from a wall outlet, 0 to 100%, manufacturer-claimed. Fast-charge modes and solar input differ — see the charging specs on this page.
Source and date. Show source
claimed sourcejackery.com ↗2026-07-04- How many watts can the Jackery Explorer 5000 Plus output?
7,200 W continuous AC output and 14,400 W surge output, manufacturer-claimed. Appliance startup demand must stay within the relevant limit.
Source and date. Show source
claimed sourcejackery.com ↗2026-07-04- How much solar input can the Jackery Explorer 5000 Plus accept?
1,200 W maximum solar input, manufacturer-claimed. Actual harvest depends on panel compatibility, sun, orientation, temperature, and conversion losses.
Source and date. Show source
claimed sourcejackery.com ↗2026-07-04- How far can the Jackery Explorer 5000 Plus expand?
Up to 60,000 Wh with compatible expansion hardware, manufacturer-claimed. The base-unit capacity and expansion-system capacity are shown separately.
Source and date. Show source
claimed sourcejackery.com ↗2026-07-04
Our verdict on the Jackery Explorer 5000 Plus
At 5,040 Wh and 7,200 W continuous this has left the portable category entirely — 61 kg is appliance weight, and the 14,400 W surge ceiling is the highest figure in our catalog. What makes it interesting is not the size but the 6,000 W solar input, which is large enough that a proper roof array can outrun daily household consumption. Treat it as a semi-permanent installation with wheels, not as something you relocate.
- You are building around solar rather than grid top-upsThe 6,000 W solar ceiling accepts a full rooftop array, so on a clear day it can take in more than the 5,040 Wh pack holds and still have capacity to spare for live loads.
- You have a load with a violent start-up spikeA 14,400 W surge ceiling is double the 7,200 W continuous rating and the largest headroom figure we hold, which covers compressors and pumps that trip smaller inverters instantly.
- You want the longer commercial cover at this sizeThe 5-year warranty is two years longer than the one on the 1000 Plus and 2000 Plus, which is a rare case of the flagship also carrying the better terms.
- Anyone will need to move it without equipmentThis is 61 kg. It is not a two-person awkward lift, it is a genuine moving job, and that rules out the vehicle and campsite uses people often imagine for a large battery. The 2000 Plus is 27.9 kg — under half — while keeping 240 V split-phase output.
- You are relying on the wall socket rather than panels to refill itA 210-minute recharge from empty is three and a half hours, the slowest in our catalog, and it makes grid top-ups between outages impractical. The HomePower 3600 Plus reaches full in 150 minutes rather than 210.
The trade-off to weigh: The 7,200 W continuous rating is the headline and it is real, but sustaining it empties 5,040 Wh in roughly 40 minutes before losses. Everything about this unit is sized for whole-house capability in short bursts or modest draw over long periods, and not for the middle case of heavy continuous load, which is what the wattage figure tends to suggest to buyers.
What our data can’t tell you: The 0 ms switchover we hold is an unusual claim and we have no independent confirmation of it; a true zero implies online double-conversion rather than the transfer-relay design most units in this class use. We also lack dimensions, noise data and the expansion ceiling, so we cannot say how far beyond 5,040 Wh the platform goes.
BatteryRank Engineering Team · Last reviewed · Method
Where to buy
Affiliate links: we may earn a commission if you buy, at no extra cost to you. Commission never affects our rankings.
Jackery Explorer 5000 Plus
Capacity truth
The watt-hour number on the box isn't what reaches your devices. Rated on the label vs what actually leaves an outlet.
5,040 Wh. Show source
claimed sourcejackery.com ↗2026-07-04The marketing number — total cell capacity.
4,284 Wh. Show source
estimated sourceestimate = battery-side usable capacity × 85% inverter efficiencyWhat reaches an AC outlet — about 15% is lost turning battery power into household AC. How we estimate.
Also independently measured
- AC charge time
210 min. Show source
verified source~210 min AC (OEM 3.5h)2026-07-04
~210 min AC (OEM 3.5h)
What it can run
Same sourced device assumptions used by our calculators, applied to this model's usable AC energy. Actual runtime varies with load, temperature, and standby draw.
| Device | Estimated runtime | Sourced assumption |
|---|---|---|
| CPAP (humidifier off) | about 59.5 nights | 9 W · |
| CPAP (heated humidifier on) | about 9.6 nights | 56 W · |
| Refrigerator (full-size) | about 68 hours | 180 W × 35% duty cycle · |
| Wi-Fi router + modem | about 238 hours | 18 W · |
| Laptop (65W charger) | about 132 hours | 65 W × 50% duty cycle · |
| Phone (one full charge) | about 214 full charges | 20 W · |
Who it fits
Mechanical matches against this model's own sourced specs — never invented sentiment, never a guess on a spec we don't have.
4284 Wh AC-delivered (est.) → multiple CPAP nights per charge
7200 W inverter, 4284 Wh AC-delivered (est.) → runs a fridge through an outage
5040 Wh, expandable, 12V DC out → long off-grid stays
How it scores
Four buyer pillars over seven sub-scores — computed from sourced data with a published formula, price-independent by design.
Power
Battery-side usable capacity and how much you can run at once.
Usable watt-hours and how far you can grow it with add-on batteries, versus its size class.
Continuous and surge wattage, outlet count, and USB-C fast-charging.
Trust
est.Owner reputation, safety record, warranty, and build durability.
Owner ratings, brand reputation, recall record, and warranty backing.
Rated cycle life, warranty length, cell chemistry, and weather sealing.
Charging
Wall and solar recharge speed.
Wall recharge speed, solar input, and multi-source charging.
Livability
62% dataLightweight, portable, and quiet enough to live with.
Weight, footprint, handle, and wheels, versus its size class.
Fan noise under load — quieter is better for bedrooms and CPAP use.
How this score is computed
We score the hardware using sourced specifications and independently attributed measurements. Seven sub-scores form a 0–100 composite, grouped into four buyer pillars. The score is price-independent: a sale changes what you pay, while this analysis evaluates the station's capabilities within its size class.
| Pillar | Built from |
|---|---|
| Power | Capacity & expansion + Output & versatility |
| Trust | Trust & reliability + Durability & longevity |
| Charging | Charging & solar |
| Livability | Portability + Quiet / livability |
Scores are cohort-relative — each model is ranked against others in its size class. Missing inputs renormalize out rather than scoring zero. Incomplete evidence can leave a sub-score unavailable; it does not establish that a model performs well. Any figure resting on a documented estimate is tagged est. Read our scoring and evidence methodology.
Full specifications
Manufacturer-claimed unless marked verified (FCC/UL/DOE/lab). Tap or focus a figure to view its source.
Capacity & battery
- Battery-side usable capacity
5,040 Wh. Show source
claimed sourcejackery.com ↗2026-07-04- Rated cycle life
4,000 cycles. Show source
claimed sourcejackery.com ↗2026-07-04- Battery chemistry
LiFePO4. Show source
claimed sourcejackery.com ↗2026-07-04- Max capacity with expansion
60,000 Wh. Show source
claimed sourcejackery.com ↗2026-07-04- Rated capacity
5,040 Wh. Show source
claimed sourcejackery.com ↗2026-07-04- Cycle-life threshold
70 %. Show source
claimed sourcejackery.com ↗2026-07-04- Battery voltage
112 V. Show source
claimed sourcejackery.com ↗2026-07-04- Battery amp-hours
45 Ah. Show source
claimed sourcejackery.com ↗2026-07-04
Energy available from the battery before output-conversion losses. AC-delivered capacity is shown separately in Capacity Truth.
How many full charge-and-drain cycles before the battery drops to its rated threshold (shown alongside — brands rate to different thresholds, so never compare bare cycle counts).
The type of battery cell. LiFePO4 (LFP) cells last far more cycles and are more thermally stable than older lithium-ion (NMC) cells.
The largest total capacity this unit can reach once you add every supported expansion battery.
The battery's nameplate energy capacity — the headline number on the box. Battery-side usable and AC-delivered capacity are shown separately.
The remaining-capacity level the cycle rating is measured to. 3,000 cycles to 80% is a stronger battery than 3,000 cycles to 70% — always read the two numbers together.
The internal battery pack's nominal voltage — mostly useful for cross-checking capacity math (volts × amp-hours ≈ watt-hours).
The pack's charge capacity in amp-hours at its nominal voltage — another way to state capacity; watt-hours is the number to compare across units.
Power output
- Continuous power output
7,200 W. Show source
claimed sourcejackery.com ↗2026-07-04- Surge power output
14,400 W. Show source
claimed sourcejackery.com ↗2026-07-04- AC outlets
5 outlets. Show source
claimed sourcejackery.com ↗2026-07-04- USB-A ports
2 ports. Show source
claimed sourcejackery.com ↗2026-07-04- USB-C ports
2 ports. Show source
claimed sourcejackery.com ↗2026-07-04- USB-C max output
100 W. Show source
claimed sourcejackery.com ↗2026-07-04- 12V car ports
1 ports. Show source
claimed sourcejackery.com ↗2026-07-04- DC barrel ports
0 ports. Show source
claimed sourcejackery.com ↗2026-07-04- Max combined output
7,200 W. Show source
claimed sourcejackery.com ↗2026-07-04
The most power you can draw at once, sustained — this has to be higher than the running wattage of whatever you're plugging in.
A brief power spike the unit can absorb when a device first switches on — matters for things with motors or compressors, like fridges.
How many standard wall-style outlets are built in.
How many USB-A ports are built in, for charging older phones, lights, and accessories.
How many USB-C ports are built in — check the per-port wattage below if you need fast charging for a laptop.
The fastest a single USB-C port can charge a device — relevant for laptops and fast-charging phones.
How many car-socket (cigarette-lighter) style 12V outputs are built in. Match the device or its supported converter to the port's voltage and current limits; a CPAP needs its exact model's documented power connection.
How many round barrel-style DC outputs are built in, used by routers, some lights, and older electronics.
The most power the unit can deliver across ALL ports at the same time — can be lower than the AC rating plus every USB port added up.
Charging & solar
- AC recharge speed
1,800 W. Show source
claimed sourcer.jackery.net ↗2026-07-04- AC charge time (0–100%)
210 min. Show source
claimed sourcejackery.com ↗2026-07-04- Max solar input
1,200 W. Show source
claimed sourcejackery.com ↗2026-07-04
How fast the unit recharges from a wall outlet — higher means shorter waits between uses.
How long a full recharge takes from a wall outlet, start to finish.
The most solar panel wattage the unit can accept — undersized panels just mean slower charging, not damage, but oversizing this is wasted money.
Reliability & durability
- UPS switchover time
20 ms. Show source
claimed sourcejackery.com ↗2026-07-04
How fast the unit takes over when grid power cuts out. Under ~20ms is fast enough that most electronics — including many CPAP machines — won't even blip.
Size & portability
- Weight
61 kg. Show source
claimed sourcejackery.com ↗2026-07-04
How much the unit weighs on its own, without accessories — relevant for portability and carrying it up stairs during an outage.
What reviewers & owners report
Named outlets and marketplaces, each rating credited where it was published.
- true whole-home 120V/240V split-phase 7200W (14400W surge) — Across reviewers ·
- genuine 0ms online UPS — Across reviewers ·
- huge expandable capacity (to 60kWh) — Across reviewers ·
- high-voltage MC4 solar — Across reviewers ·
- 5-yr warranty — Across reviewers ·
- very heavy/stationary (~134 lb) — Across reviewers ·
- premium price — Across reviewers ·
- no car charging — Across reviewers ·
- needs Smart Transfer Switch + install for home integration — Across reviewers ·
- thin independent lab data — Across reviewers ·
- Wirecutter: none
- Popular Mechanics: none
- covered by niche solar channels as a whole-home/240V option — YouTube reviewers ·
- no major measurement-channel scored review captured as of 2026-07-04 — YouTube reviewers ·
Brand reputation: Newer 2024 flagship home-backup unit; Amazon 4.2/44 (small sample). Positioned vs EcoFlow Delta Pro 3 / whole-home systems. No systemic failure pattern found; limited long-term data
Sources: jackery.com Explorer 5000 Plus page (full Tech Specs) + JE-5000A user manual accessed 2026-07-04; amazon.com/dp/B0DFGLG35L accessed 2026-07-04; backuppowerhub.com, offgridbenchmark.com, thesolarlab.com reviews; saferproducts.gov (Jackery-wide) checked 2026-07-04
What else to consider instead of the Jackery Explorer 5000 Plus
Same or adjacent size class, ordered by the price-independent composite. Every alternative is better than the Jackery Explorer 5000 Plus at something and worse at something else, so each row states both halves — each one arithmetic on two sourced readings, with a dimension skipped rather than guessed when either side is missing a figure.
- EcoFlow DELTA Pro Ultra Xscore 80 · same size class
- Why you would switch
- The EcoFlow DELTA Pro Ultra X delivers 144% more usable AC energy (10,445 Wh vs 4,284 Wh).
- What you give up
- The Jackery Explorer 5000 Plus is 55% lighter (61 kg vs 135.5 kg).
- Pecron F5000LFPscore 69 · same size class
- Why you would switch
- The Pecron F5000LFP takes 383% more rated solar input (5,800 W vs 1,200 W) for off-grid recharging.
- What you give up
- The Jackery Explorer 5000 Plus carries 7 years of warranty against 5.
- EcoFlow DELTA Pro Ultrascore 57 · same size class
- Why you would switch
- The EcoFlow DELTA Pro Ultra delivers 22% more usable AC energy (5,222 Wh vs 4,284 Wh).
- What you give up
- The Jackery Explorer 5000 Plus is 26% lighter (61 kg vs 82.4 kg).
- Zendure SuperBase V6400score 46 · same size class
- Why you would switch
- The Zendure SuperBase V6400 delivers 28% more usable AC energy (5,472 Wh vs 4,284 Wh).
- What you give up
- The Jackery Explorer 5000 Plus carries 89% more continuous output (7,200 W vs 3,800 W), which decides what it can run at all.
- EcoFlow DELTA Pro 3score 76 · one class over
- Why you would switch
- The EcoFlow DELTA Pro 3 is 16% lighter (51.5 kg vs 61 kg).
- What you give up
- The Jackery Explorer 5000 Plus delivers 13% more usable AC energy (4,284 Wh vs 3,790 Wh).
Quick answers
Each answer restates a sourced figure from elsewhere on this page — nothing new, nothing guessed.
- How many amp-hours (Ah) or milliamp-hours (mAh) is the Jackery Explorer 5000 Plus?
- 45 Ah (45,000 mAh) at its nominal 112 V, manufacturer-claimed. Watt-hours is the number to compare across units. Use the mAh to Wh converter.
- How much capacity does the Jackery Explorer 5000 Plus deliver through an AC outlet?
- About 4,284 Wh of the rated 5,040 Wh reaches an AC outlet from a full charge — an estimate after our published 15% inverter-loss constant (marked est. on this page).
- What is the cycle-life rating of the Jackery Explorer 5000 Plus?
- 4,000 cycles to 70% remaining capacity, manufacturer-claimed. A cycle rating is not a calendar-life guarantee.

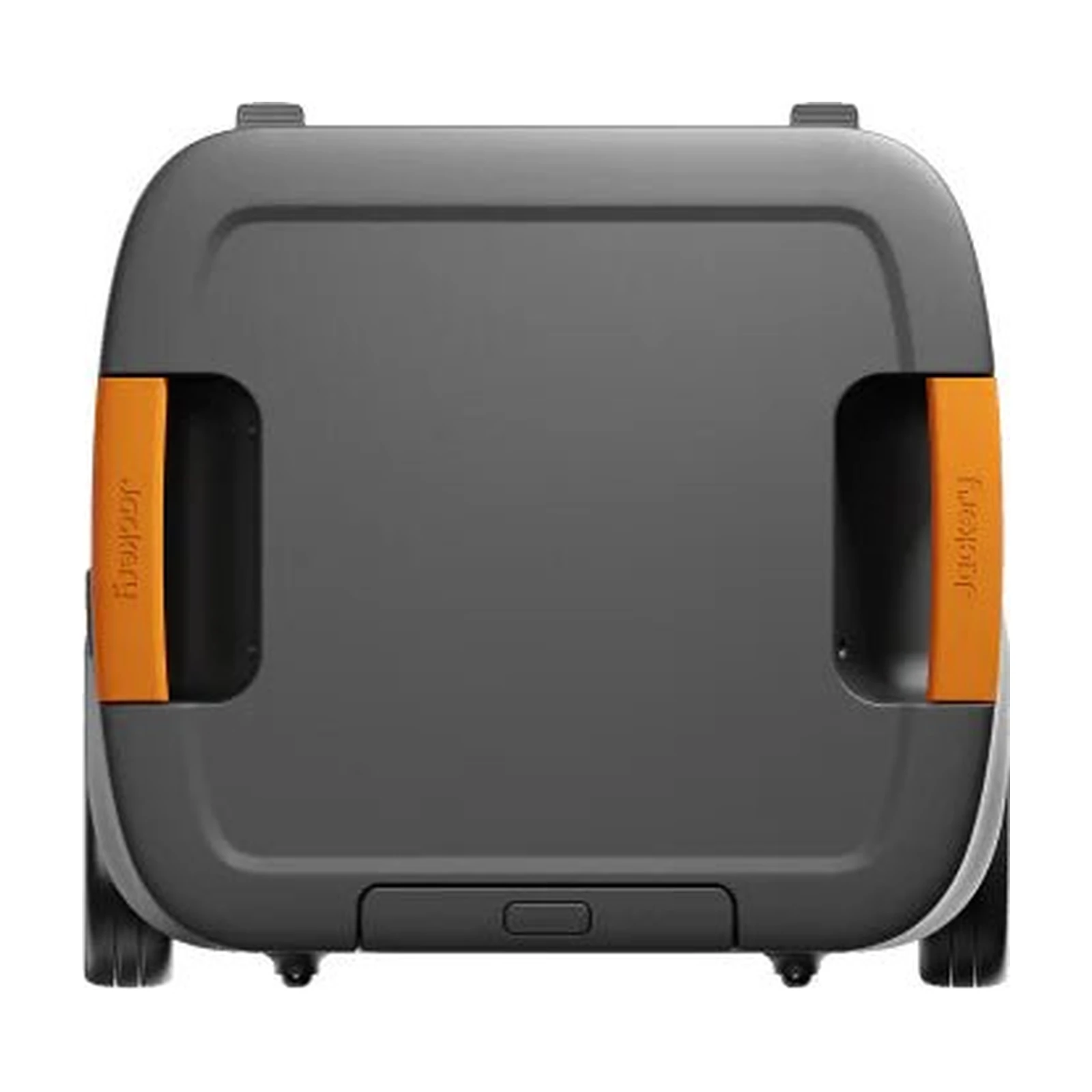

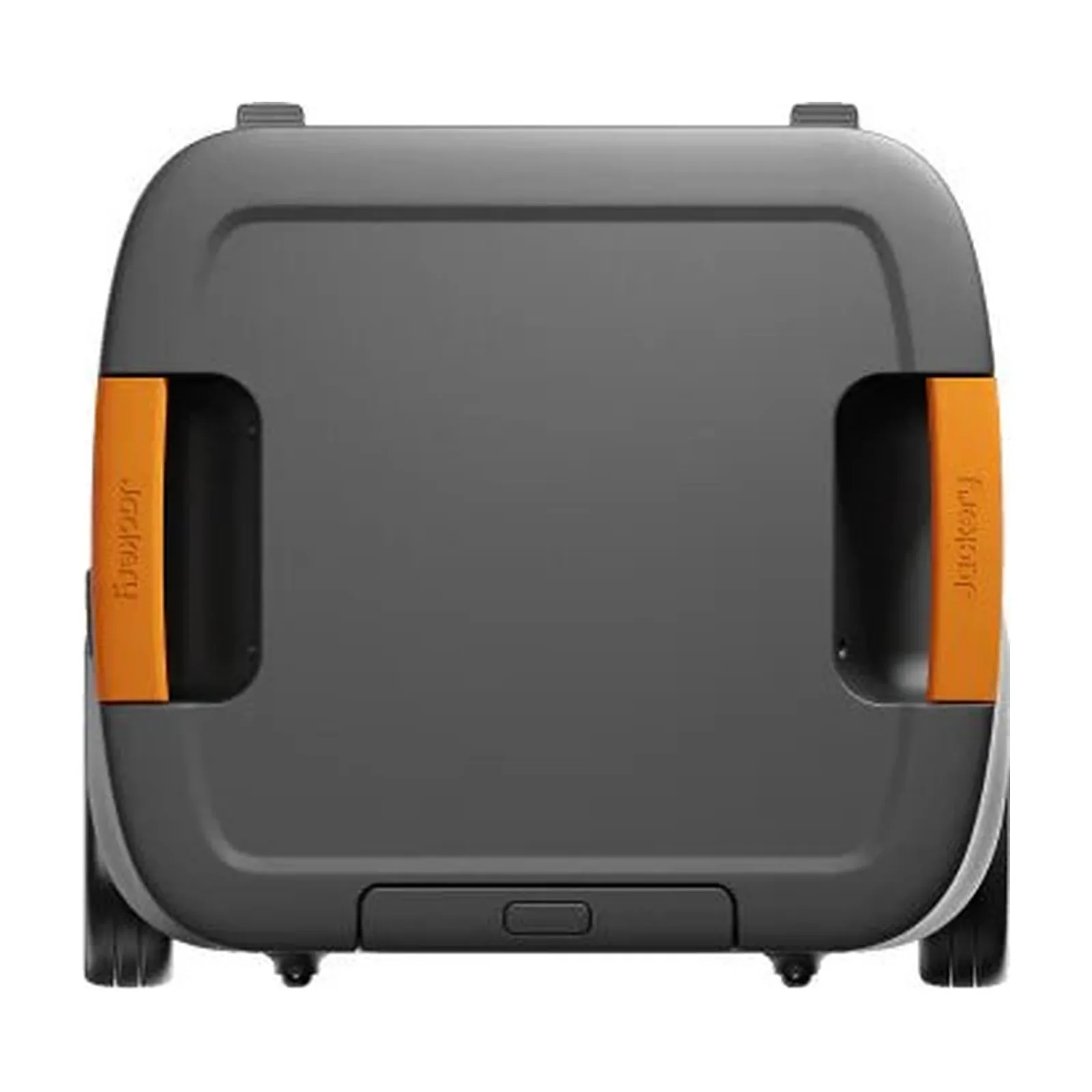

- Can the Jackery Explorer 5000 Plus work as a UPS?
- Its manufacturer-claimed transfer time is 20 ms. Confirm that your connected equipment tolerates that transfer time; this is not the same as a zero-transfer online UPS.
Keep exploring
- Refrigerator runtime guide
- CPAP nights-per-charge calculator
- How Many Watts Does a Chest Freezer Use?
- How Many Watts Does a Pellet Stove Use?
- How Many Watts Does a 12V Camping Fridge Use?
- How Many Watts Does an RV Refrigerator Use?
- Portable Power for a 12-Hour Outage
- Portable Power for a One-Day Outage
- Power a Refrigerator, Wi-Fi, and Lights
- Complete CPAP Overnight Power Kit
- Complete Refrigerator Outage Kit
