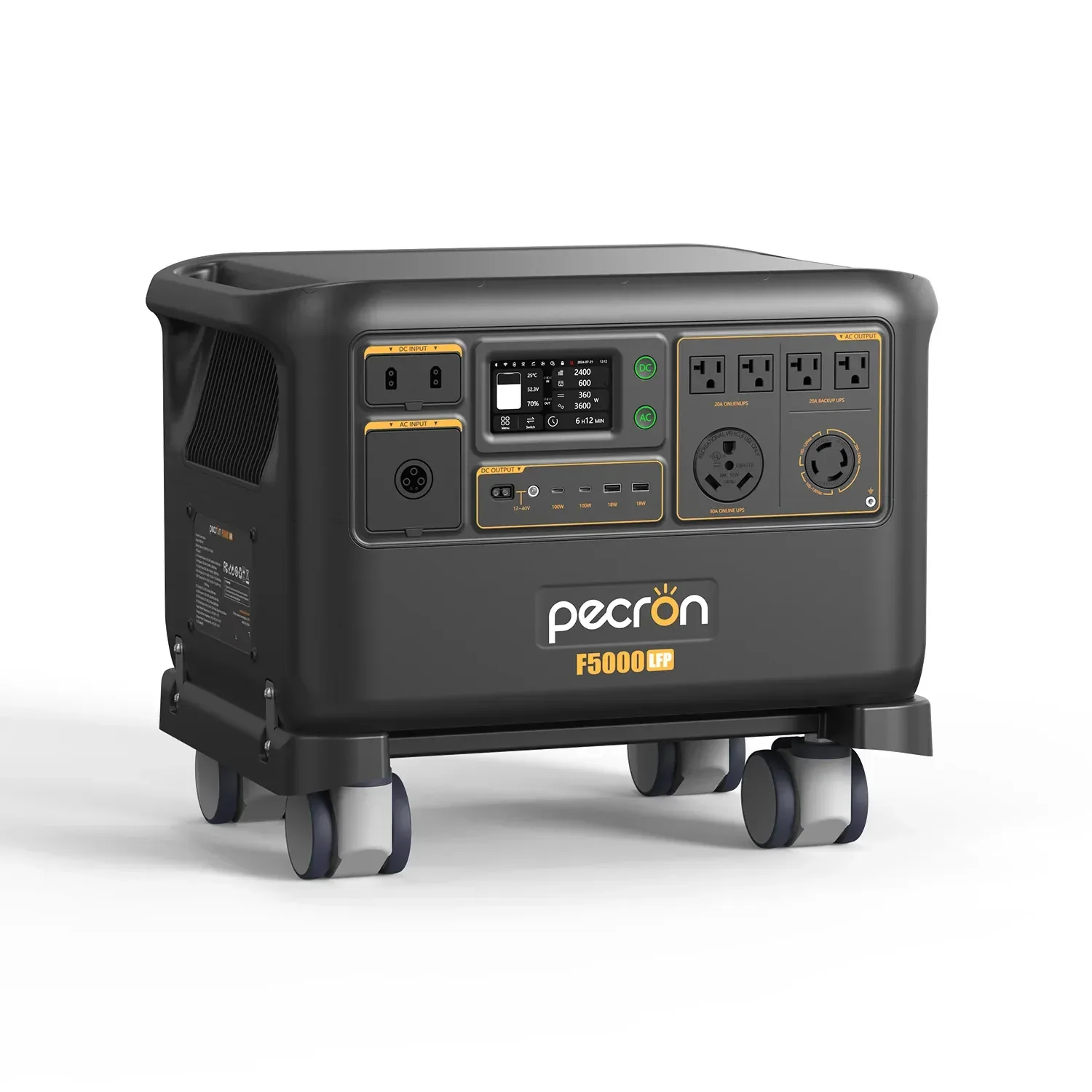

Pecron F5000LFP
- AC delivered · est.
4,352 Wh. Show source
estimated sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- output
7,200 W. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- weight
56.2 kg. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093
Balanced
#2 of 5
in the Whole-home / mega class · small class (n=5)
Lifted by Durability & longevity and Portability; held back by capacity & expansion.
Check current availability and pricing at the retailer.
See alternatives to the Pecron F5000LFP →At a glance
We review Pecron F5000LFP as a whole-home / mega model. Use output, delivered capacity and startup limits to check your appliances. It supplies 7,200 W of continuous AC output. BatteryRank scores it 69 out of 100 within its size class.
Pecron F5000LFP specs at a glance
Find the reading you need, then follow its source in the full specifications below.
- How much does the Pecron F5000LFP weigh?
56.2 kg (123.9 lb), manufacturer-claimed, without accessories.
Source and date. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- What are the dimensions of the Pecron F5000LFP?
551 × 381 × 333 mm (21.7 × 15 × 13.1 in), length × width × height, manufacturer-claimed.
Source and date. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- How many watts can the Pecron F5000LFP output?
7,200 W continuous AC output, manufacturer-claimed. Appliance startup demand must stay within the relevant limit.
Source and date. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- How much solar input can the Pecron F5000LFP accept?
5,800 W maximum solar input, manufacturer-claimed. Actual harvest depends on panel compatibility, sun, orientation, temperature, and conversion losses.
Source and date. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- How far can the Pecron F5000LFP expand?
Up to 35,840 Wh with compatible expansion hardware, manufacturer-claimed. The base-unit capacity and expansion-system capacity are shown separately.
Source and date. Show source
claimed sourcepecron.com2026-07-27https://www.pecron.com/products/pecron-f5000lfp-portable-power-station
Our verdict on the Pecron F5000LFP
Pecron's largest unit and its most solar-committed: 5,120 Wh paired with a 5,800 W input ceiling, which is enough array capacity to refill the entire pack inside an hour of ideal conditions. A 7,200 W continuous inverter with 240 V split-phase support makes it genuine backup hardware. The omission that will catch people out is DC — there is no 12 V car socket on it at all, which is unusual at any size.
- You are pairing it with a roof-scale array rather than folding panelsA 5,800 W solar ceiling on a 5,120 Wh pack means generation can outrun storage, which is the condition for true off-grid cycling.
- You need 240 V at real powerSplit-phase output backed by 7,200 W continuous covers well pumps and dryer circuits rather than merely supporting the voltage.
- You want long service from a large packA 4,000-cycle rating to 80 percent on 5,120 Wh implies more than a decade of daily cycling before meaningful degradation.
- Any part of your setup runs on 12 V DCThis unit has zero 12 V car sockets, so a compressor fridge or a vehicle accessory would need to run through the inverter and back down through an adapter, losing energy twice. The F3000LFP provides a 12 V DC socket, which this model omits entirely.
- The unit will need to be moved after installation56.2 kg is a two-person lift at best and there is no realistic single-person handling of it. The F3000 is 41.5 kg against 56.2 kg here.
The trade-off to weigh: The 5,800 W solar ceiling is the reason to buy this and it is a genuinely large number, but it presumes an installation most buyers do not have. Reaching it takes roughly thirteen to fourteen residential panels, properly mounted and strung. Bought for portable use with a folding kit, the headline capability sits almost entirely unused.
What our data can’t tell you: No surge rating, no usable capacity, no wall-recharge time and no switchover figure are sourced here. For a 7,200 W inverter intended to drive 240 V household circuits, the absent surge ceiling is the significant one — it is the number that determines whether a well pump starts, which is a primary reason to want split-phase output at all.
BatteryRank Engineering Team · Last reviewed · Method
Where to buy
Affiliate links: we may earn a commission if you buy, at no extra cost to you. Commission never affects our rankings.
Pecron F5000LFP
Capacity truth
The watt-hour number on the box isn't what reaches your devices. Rated on the label vs what actually leaves an outlet.
5,120 Wh. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093The marketing number — total cell capacity.
4,352 Wh. Show source
estimated sourceestimate = battery-side usable capacity × 85% inverter efficiencyWhat reaches an AC outlet — about 15% is lost turning battery power into household AC. How we estimate.
What it can run
Same sourced device assumptions used by our calculators, applied to this model's usable AC energy. Actual runtime varies with load, temperature, and standby draw.
| Device | Estimated runtime | Sourced assumption |
|---|---|---|
| CPAP (humidifier off) | about 60.4 nights | 9 W · |
| CPAP (heated humidifier on) | about 9.7 nights | 56 W · |
| Refrigerator (full-size) | about 69 hours | 180 W × 35% duty cycle · |
| Wi-Fi router + modem | about 242 hours | 18 W · |
| Laptop (65W charger) | about 134 hours | 65 W × 50% duty cycle · |
| Phone (one full charge) | about 217 full charges | 20 W · |
Who it fits
Mechanical matches against this model's own sourced specs — never invented sentiment, never a guess on a spec we don't have.
4352 Wh AC-delivered (est.) → multiple CPAP nights per charge
7200 W inverter, 4352 Wh AC-delivered (est.) → runs a fridge through an outage
5120 Wh, expandable → long off-grid stays
How it scores
Four buyer pillars over seven sub-scores — computed from sourced data with a published formula, price-independent by design.
Power
est.Battery-side usable capacity and how much you can run at once.
Usable watt-hours and how far you can grow it with add-on batteries, versus its size class.
Continuous and surge wattage, outlet count, and USB-C fast-charging.
Trust
42% dataOwner reputation, safety record, warranty, and build durability.
Owner ratings, brand reputation, recall record, and warranty backing.
Rated cycle life, warranty length, cell chemistry, and weather sealing.
Charging
est.Wall and solar recharge speed.
Wall recharge speed, solar input, and multi-source charging.
Livability
62% dataLightweight, portable, and quiet enough to live with.
Weight, footprint, handle, and wheels, versus its size class.
Fan noise under load — quieter is better for bedrooms and CPAP use.
How this score is computed
We score the hardware using sourced specifications and independently attributed measurements. Seven sub-scores form a 0–100 composite, grouped into four buyer pillars. The score is price-independent: a sale changes what you pay, while this analysis evaluates the station's capabilities within its size class.
| Pillar | Built from |
|---|---|
| Power | Capacity & expansion + Output & versatility |
| Trust | Trust & reliability + Durability & longevity |
| Charging | Charging & solar |
| Livability | Portability + Quiet / livability |
Scores are cohort-relative — each model is ranked against others in its size class. Missing inputs renormalize out rather than scoring zero. Incomplete evidence can leave a sub-score unavailable; it does not establish that a model performs well. Any figure resting on a documented estimate is tagged est. Read our scoring and evidence methodology.
Full specifications
Manufacturer-claimed unless marked verified (FCC/UL/DOE/lab). Tap or focus a figure to view its source.
Capacity & battery
- Rated cycle life
4,000 cycles. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- Battery chemistry
LiFePO4. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- Max capacity with expansion
35,840 Wh. Show source
claimed sourcepecron.com2026-07-27https://www.pecron.com/products/pecron-f5000lfp-portable-power-station- Rated capacity
5,120 Wh. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- Cycle-life threshold
80 %. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093
How many full charge-and-drain cycles before the battery drops to its rated threshold (shown alongside — brands rate to different thresholds, so never compare bare cycle counts).
The type of battery cell. LiFePO4 (LFP) cells last far more cycles and are more thermally stable than older lithium-ion (NMC) cells.
The largest total capacity this unit can reach once you add every supported expansion battery.
The battery's nameplate energy capacity — the headline number on the box. Battery-side usable and AC-delivered capacity are shown separately.
The remaining-capacity level the cycle rating is measured to. 3,000 cycles to 80% is a stronger battery than 3,000 cycles to 70% — always read the two numbers together.
Power output
- Continuous power output
7,200 W. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- AC outlets
5 outlets. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- 12V car ports
0 ports. Show source
claimed sourcepecron.com2026-07-27https://www.pecron.com/products/pecron-f5000lfp-portable-power-station
The most power you can draw at once, sustained — this has to be higher than the running wattage of whatever you're plugging in.
How many standard wall-style outlets are built in.
How many car-socket (cigarette-lighter) style 12V outputs are built in. Match the device or its supported converter to the port's voltage and current limits; a CPAP needs its exact model's documented power connection.
Charging & solar
- AC recharge speed
3,600 W. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093- Max solar input
5,800 W. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093
How fast the unit recharges from a wall outlet — higher means shorter waits between uses.
The most solar panel wattage the unit can accept — undersized panels just mean slower charging, not damage, but oversizing this is wasted money.
Size & portability
- Weight
56.2 kg. Show source
claimed sourcecdn.shopify.com2026-07-27https://cdn.shopify.com/s/files/1/0509/5263/4556/files/PECRON_F5000_LFP_user_manual_100V_120V_V2-20260106.pdf?v=1770702093
How much the unit weighs on its own, without accessories — relevant for portability and carrying it up stairs during an outage.
What reviewers & owners report
Named outlets and marketplaces, each rating credited where it was published.
What else to consider instead of the Pecron F5000LFP
Same or adjacent size class, ordered by the price-independent composite. Every alternative is better than the Pecron F5000LFP at something and worse at something else, so each row states both halves — each one arithmetic on two sourced readings, with a dimension skipped rather than guessed when either side is missing a figure.
- EcoFlow DELTA Pro Ultra Xscore 80 · same size class
- Why you would switch
- The EcoFlow DELTA Pro Ultra X delivers 140% more usable AC energy (10,445 Wh vs 4,352 Wh).
- What you give up
- The Pecron F5000LFP is 59% lighter (56.2 kg vs 135.5 kg).
- EcoFlow DELTA Pro Ultrascore 57 · same size class
- Why you would switch
- The EcoFlow DELTA Pro Ultra delivers 20% more usable AC energy (5,222 Wh vs 4,352 Wh).
- What you give up
- The Pecron F5000LFP is 32% lighter (56.2 kg vs 82.4 kg).
- Jackery Explorer 5000 Plusscore 56 · same size class
- Why you would switch
- The Jackery Explorer 5000 Plus carries 7 years of warranty against 5.
- What you give up
- The Pecron F5000LFP takes 383% more rated solar input (5,800 W vs 1,200 W) for off-grid recharging.
- Zendure SuperBase V6400score 46 · same size class
- Why you would switch
- The Zendure SuperBase V6400 delivers 26% more usable AC energy (5,472 Wh vs 4,352 Wh).
- What you give up
- The Pecron F5000LFP carries 89% more continuous output (7,200 W vs 3,800 W), which decides what it can run at all.
- EcoFlow DELTA Pro 3score 76 · one class over
- Why you would switch
- Nothing in the sourced data separates it from the Pecron F5000LFP by a margin worth acting on.
- What you give up
- The Pecron F5000LFP delivers 15% more usable AC energy (4,352 Wh vs 3,790 Wh).
Quick answers
Each answer restates a sourced figure from elsewhere on this page — nothing new, nothing guessed.
- How many milliamp-hours (mAh) is the Pecron F5000LFP?
- Its manufacturer-claimed capacity is 5,120 Wh. A mAh conversion also needs the battery's nominal voltage: mAh = Wh × 1,000 ÷ V. Our record has no sourced nominal battery voltage, so we leave the mAh figure unspecified. USB output voltage is not a substitute for battery voltage. Compare watt-hours across power stations.
- How much capacity does the Pecron F5000LFP deliver through an AC outlet?
- About 4,352 Wh of the rated 5,120 Wh reaches an AC outlet from a full charge — an estimate after our published 15% inverter-loss constant (marked est. on this page).
- What is the cycle-life rating of the Pecron F5000LFP?
- 4,000 cycles to 80% remaining capacity, manufacturer-claimed. A cycle rating is not a calendar-life guarantee.
